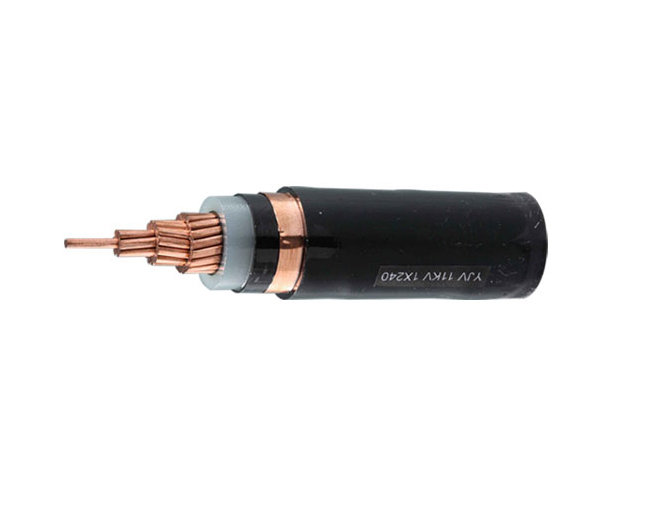

Single core XLPE insulated power cable(8.7/10 8.7/15KV)
Nominal	Nominal	Approx	Approx.weight of		Approx	Approx.weight of		Approx	Approx.weight of
Cross	Insulation	overall	cable kg/km		overall	cable kg/km		overall	cable kg/km
Sectional	Thickness	diameter			diameter			diameter
Area		of cable	YJV	YJLV	of cable	YJV32	YJV32	of cable	YJV42	YJV42
MM2	MM	MM	YJV	YJLV	MM	YJV33	YJV33	MM	YJV43	YJV43
25	4.5	22	665	506	28	1496	1337	33	2788	2629
35	4.5	23	794	566	29	1722	1444	34	3050	2772
50	4.5	24	931	634	30	1858	1560	35	3261	2964
70	4.5	26	1175	743	32	2176	1744	37	3649	3217
95	4.5	27	1490	872	34	2804	2186	39	4115	3496
120	4.5	30	1857	1051	37	3259	2353	41	4673	3867
150	4.5	31	2152	1176	38	3641	2665	43	5104	4127
185	4.5	33	2496	1325	40	4044	2873	45	5588	4417
240	4.5	35	3077	1550	42	4742	3214	47	6375	4848
300	4.5	38	3817	1834	47	6017	4034	49	7320	5337
400	4.5	41	4669	2187	50	7079	4597	53	8492	6010
500	4.5	45	5615	2529	54	8329	5243	58	10362	7277
630	4.5	49	6398	3006	57	9849	5958	62	12053	8160
800	4.5	54	8518	3838	63	11671	6991	67	14050	9369
1000	4.5	61	10849	4656	67	14230	8038	72	16815	10622

Three-core XLPE insulated power cable(8.7/10 8.7/15KV)
Nominal	Nominal	Approx	Approx.weight of		Approx	Approx.weight of		Approx	Approx.weight of		Approx	Approx.weight of
Cross	Insulation	overall	cable kg/km		overall	cable kg/km		overall	cable kg/km		overall	cable kg/km
Sectional	Thickness	diameter			diameter			diameter			diameter
Area		of cable	YJV	YJLV	of cable	YJV22	YJV22	of cable	YJV32	YJV32	of cable	YJV42	YJV42
MM2	MM	MM	YJV	YJLV	MM	YJV23	YJV23	MM	YJV33	YJV33	MM	YJV43	YJV43
25	4.5	46	2380	1901	50	3406	2929	52	4745	4262	55	6203	5719
35	4.5	49	2818	2132	53	3896	3210	54	5381	4589	59	6824	6132
50	4.5	52	3299	2405	56	4441	3547	59	5935	5030	61	8195	7291
70	4.5	56	4117	2818	59	5342	4042	62	6942	5631	65	8713	7401
95	4.5	59	5155	3294	64	6557	4697	66	8230	6352	69	10085	8208
120	4.5	64	6317	3892	69	7896	5471	71	9715	7268	74	11720	9273
150	4.5	68	7303	4366	73	8971	6033	76	11692	8728	78	12915	9951
185	4.5	72	8405	4880	76	10179	6654	80	13234	9677	82	14487	10931
240	4.5	77	10323	5728	82	12272	7676	85	15496	10859	87	16828	12231
300	4.5	82	12658	6691	88	15673	9706	90	18234	12213	92	19689	13668
400	4.5	89	15195	7767	96	18830	11402	100	21035	13607	103	22440	15160
500	4.5	96	18305	9020	104	22267	12982	107	24589	15304	110	25961	16874
